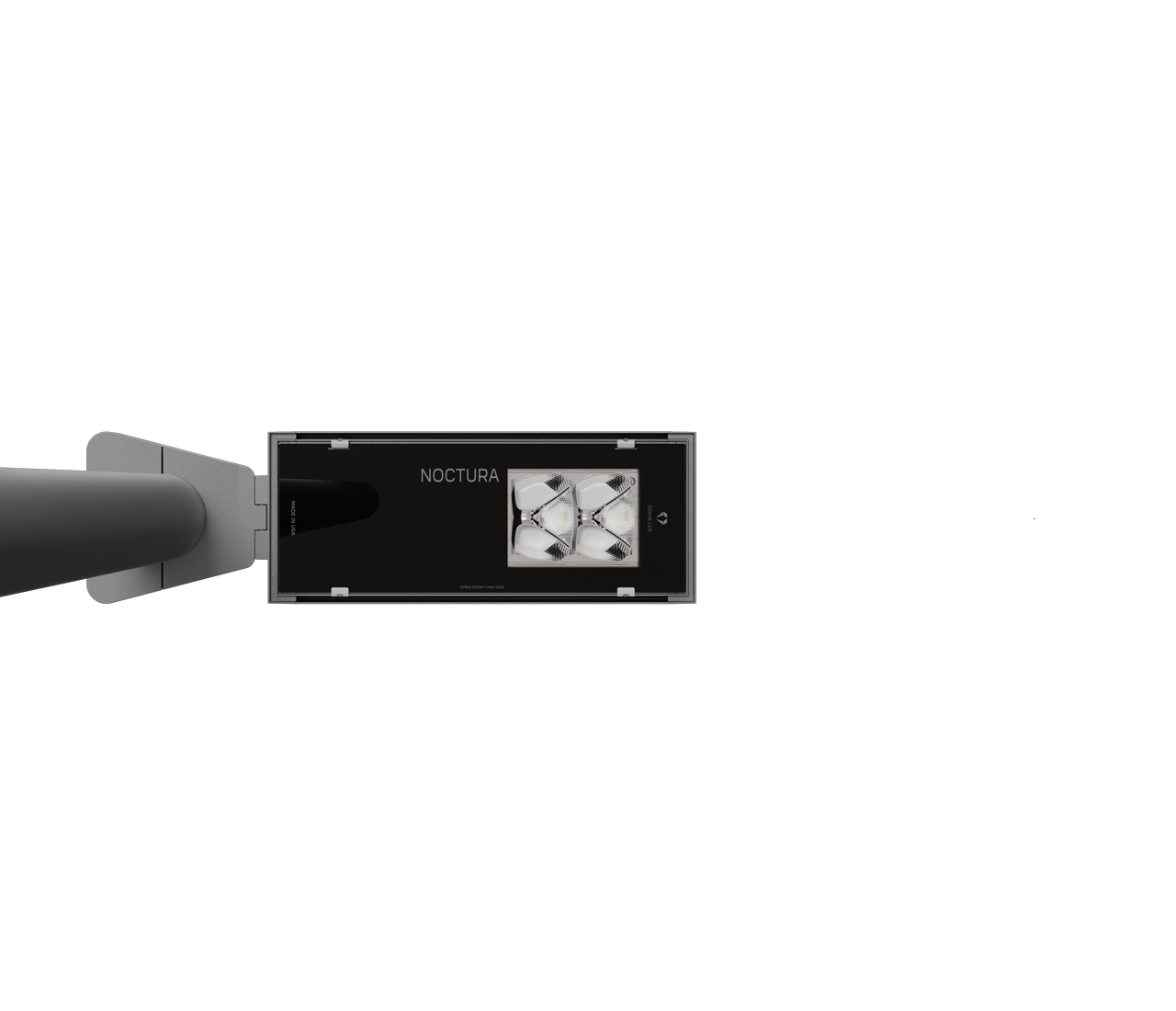

NOCTURA AC 500
The Noctura 500 is the essential compact model within the Noctura series,
designed for precision lighting in environments where scale and subtlety are paramount.
It offers a refined, low-profile footprint while delivering the same industrial-grade performance as the larger versions.
Download Files:
Applications: Street and urban lighting.
Tilt angle: Post-top: 0°, +5°, +10°, +15°, +20°.
Bracket: +5°, 0°, -5°, -10°, -15°, -20°.
Weight: 41 Lbs / 19 kg
EPA: Side: 1.1 ft2 (0.1m2)
Top: 4.3 ft2 (0.4m2)
(Cross Section Surface)
Use Drag coefficient factor - 0.5
Mounting: M3 - 3” x 4” L (76 mm x 100 mm L)
Power Factor: >0.9 (full load)
Power cable: H07RN-F a2/3 x 1.5mm2
Connector-IP68: Cable Dia. 0.27”-0.39” (7mm-10mm)
Optical unit lifetime
(Ta: 77°F/25°C)
525 mA: L90B10 ≥ 100 000 h
(Including critical failures)
L80 > 100 000 h, TM-21
700 mA: L90B10 ≥ 100 000 h
(Including critical failures)
L80 > 100 000 h, TM-21
