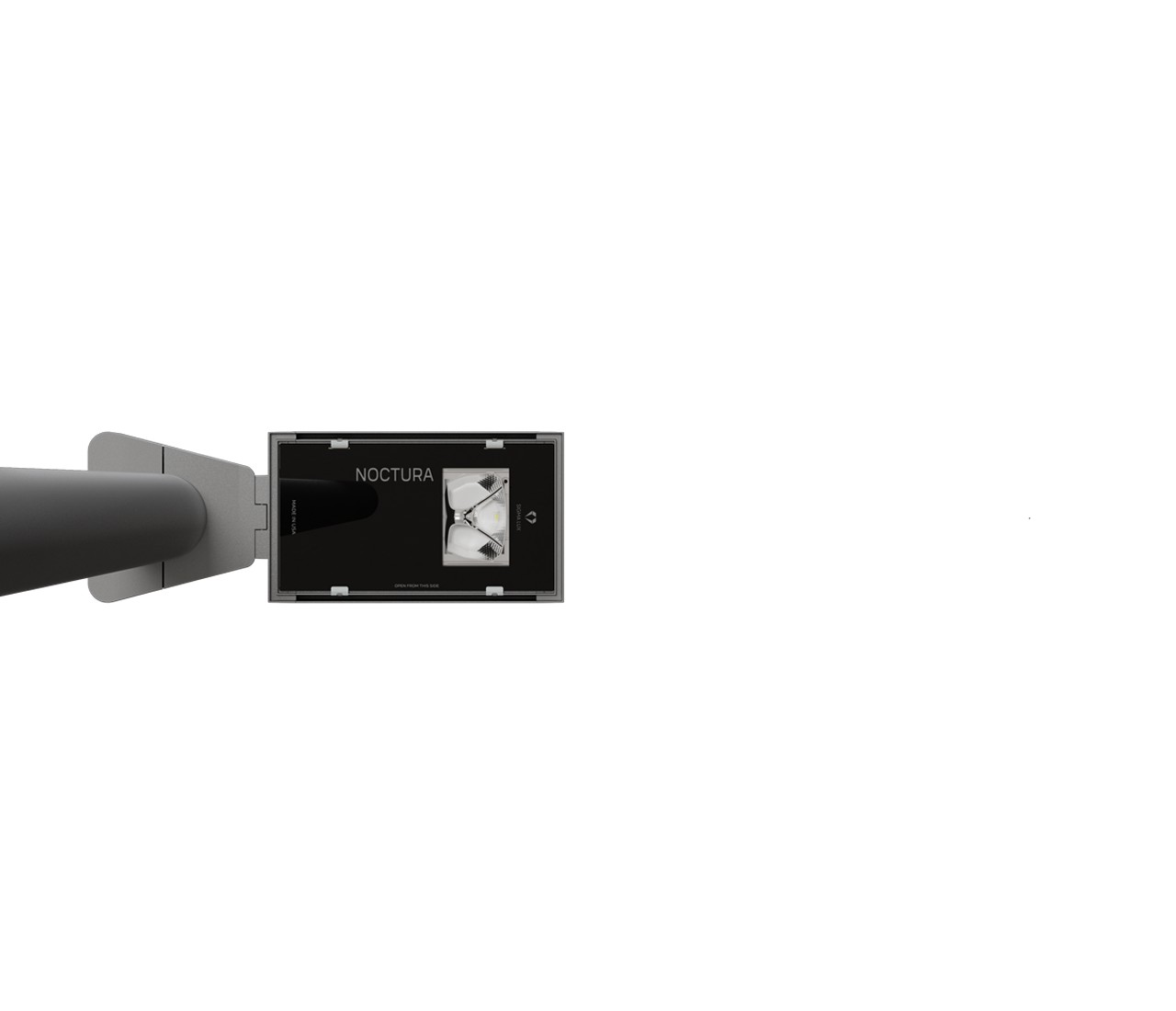

NOCTURA AC 350
The Noctura 350 is the most streamlined and agile model in the Noctura lineup.
Designed for environments where lighting needs to be effective yet nearly invisible,
this ultra-compact fixture provides professional-grade illumination in a remarkably small form factor.
Download Files:
Applications: Street and urban lighting.
Tilt angle: Post-top: 0°, +5°, +10°, +15°, +20°.
Bracket: +5°, 0°, -5°, -10°, -15°, -20°.
Weight: 41 Lbs / 19 kg
EPA: Side: 1.1 ft2 (0.1m2)
Top: 4.3 ft2 (0.4m2)
(Cross Section Surface)
Use Drag coefficient factor - 0.5
Mounting: M3 - 3” x 4” L (76 mm x 100 mm L)
Power Factor: >0.9 (full load)
Power cable: H07RN-F a2/3 x 1.5mm2
Connector-IP68: Cable Dia. 0.27”-0.39” (7mm-10mm)
Optical unit lifetime
(Ta: 77°F/25°C)
525 mA: L90B10 ≥ 100 000 h
(Including critical failures)
L80 > 100 000 h, TM-21
700 mA: L90B10 ≥ 100 000 h
(Including critical failures)
L80 > 100 000 h, TM-21
