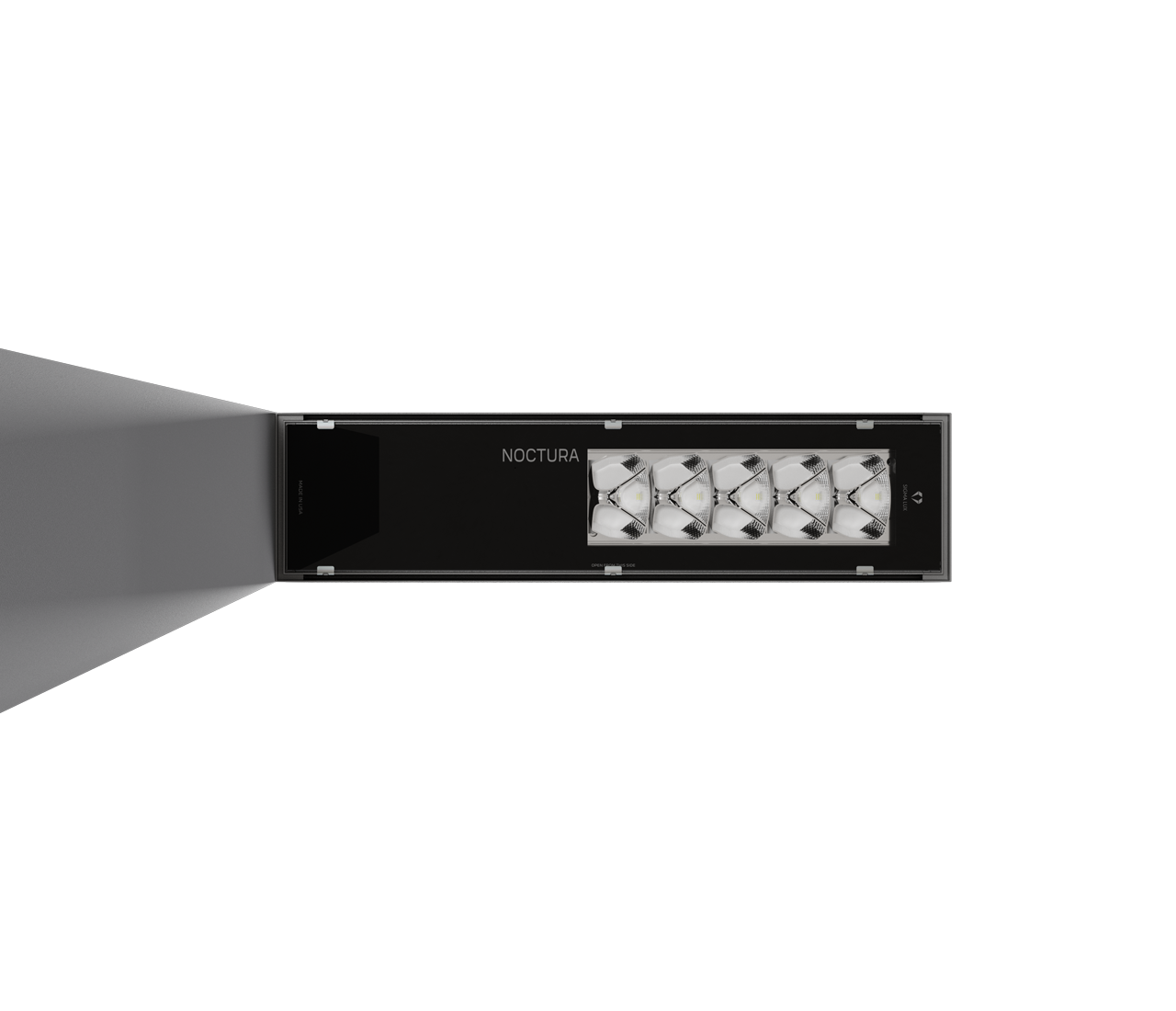

NOCTURA RX 800
The Noctura 800 on a square pole represents a powerful fusion
of industrial performance and sharp, geometric design.
Situated as a high-capacity model within the series,
the 800 is perfectly scaled for demanding urban environments where a bold,
structured aesthetic is required.
Download Files:
Applications: Street and urban lighting.
Tilt angle: 0°
Weight: 41 Lbs / 19 kg
EPA: Side: 1.1 ft2 (0.1m2)
Top: 4.3 ft2 (0.4m2)
(Cross Section Surface)
Use Drag coefficient factor - 0.5
Mounting: M3 - 3” x 4” L (76 mm x 100 mm L)
Power Factor: >0.9 (full load)
Power cable: H07RN-F a2/3 x 1.5mm2
Connector-IP68: Cable Dia. 0.27”-0.39” (7mm-10mm)
Optical unit lifetime
(Ta: 77°F/25°C)
525 mA: L90B10 ≥ 100 000 h
(Including critical failures)
L80 > 100 000 h, TM-21
700 mA: L90B10 ≥ 100 000 h
(Including critical failures)
L80 > 100 000 h, TM-21
