Bell S

The Bell S luminaire is a compact version of this stylish urban fixture,
ideal for illuminating intimate spaces such as park alleys, bike paths,
and sidewalks.

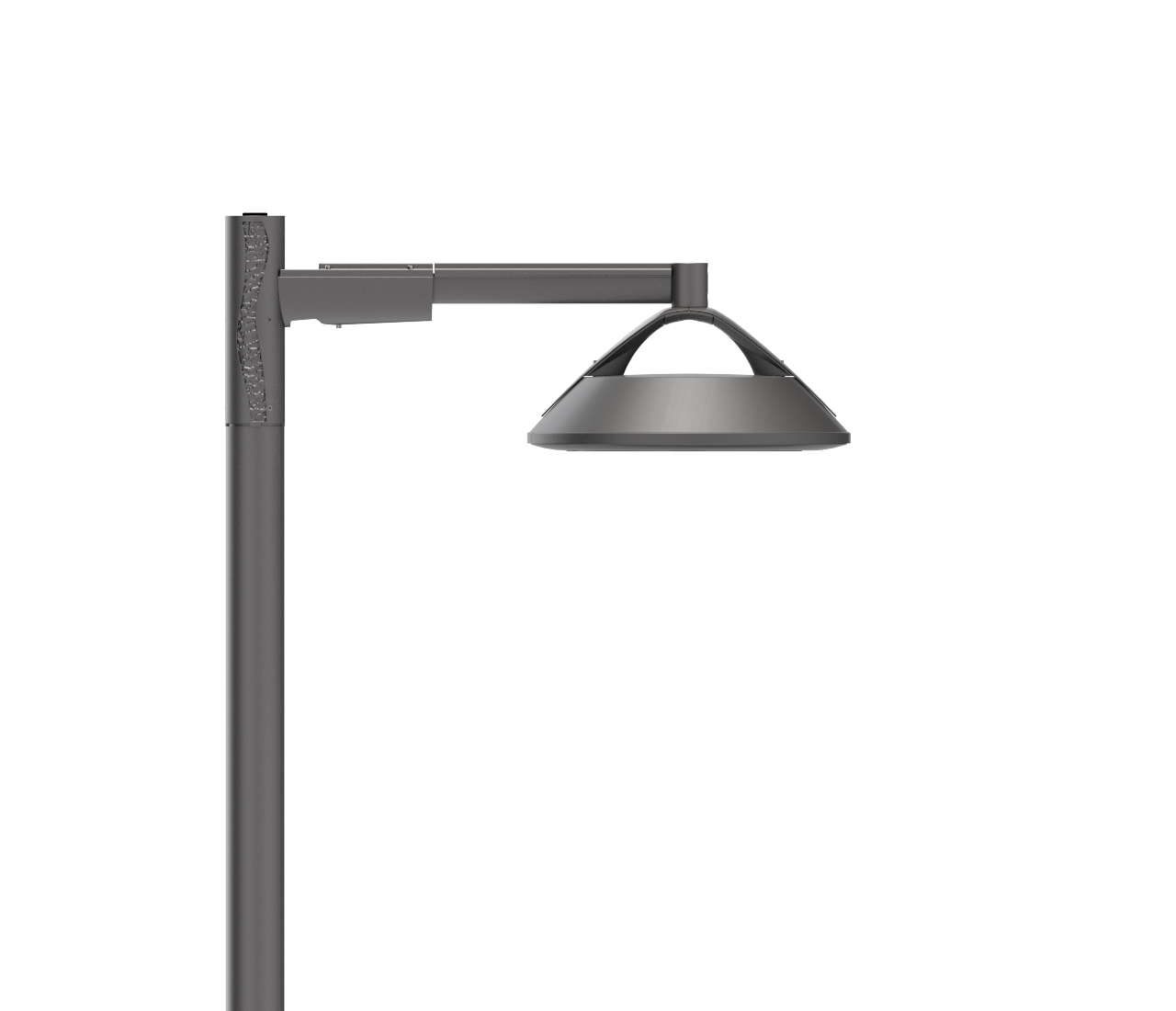

The smaller lamp retains the unique, modern design shown in the photo,
blending perfectly with street furniture.
Despite its smaller dimensions, this model still offers full modularity
the option to choose from three arm lengths and install up to four reflectors.
As a result, the Bell S guarantees precise, energy-efficient lighting without
overwhelming the surroundings with its size.

Download Files:





Applications: Street and urban lighting.

Tilt angle:

Weight: 23.15 Lbs  / 10.5 kg

EPA: Side: 0.75 ft2 (0.07m2)
Top: 2.58 ft2 (0.24m2)
(Cross Section Surface)
Use Drag coefficient factor - 0.5

Mounting: MPD mounting

Power Factor: >0.9 (full load)

Power cable: 12GA

Connector-IP68: Cable Dia. 0.27”-0.39”
(7mm-10mm)

Optical unit lifetime
(Ta: 77°F/25°C)
525mA: L90B10 ≥ 100 000 h
(Including critical failures)
L90 > 100 000 h, TM-21
700mA: L90B10 ≥ 100 000 h
(Including critical failures)
L90 > 100 000 h, TM-21
